DG series flow chart
Page view
产品名称

DG series flow chart

Summary information
ThefollowingistheDG200granulationplan.OnesetofDG200capacityis0.9~1.2t/h.Theoutputwascalculatedaccordingtoammoniumchloride.Theyieldsofdifferentmaterialsweredifferent.DGseries,aswellasDG350typeproductio
没有此类产品
Product Detail

The following is the DG200 granulation plan. One set of DG200 capacity is 0.9~1.2 t/h. The output was calculated according to ammonium chloride. The yields of different materials were different. DG series, as well as DG350 type production is higher, the following layout program for users only, specific layout, my company technical personnel can be in accordance with user requirements, do detailed design

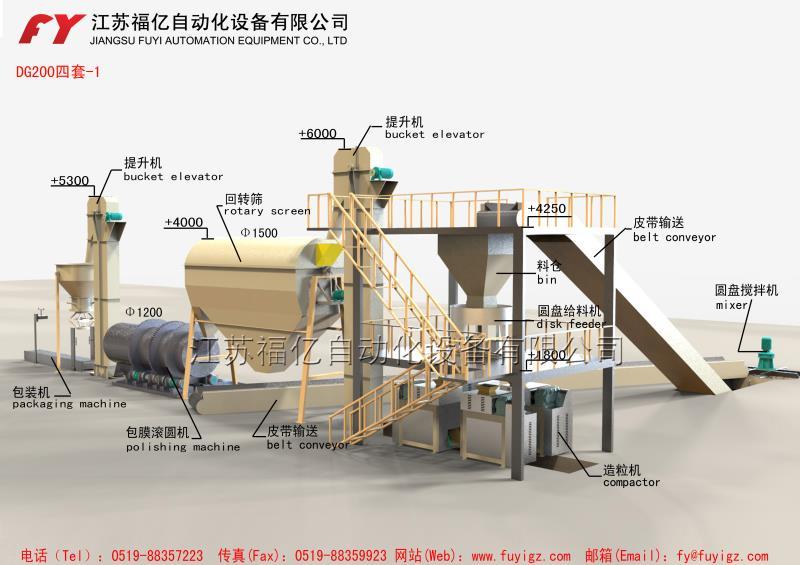

1、Flow chat of DG200 granulation line with 4t/h.

福亿机械

No.

Name

Specifications

Material

Qty.

Note

1

Mixer

φ2200 Q235 1

Motor 11KW

2

Disc feeder

  Q235 1

Motor 1.5KW

3

Granulator DG200

    4

The main reducer adopts hard toothed surface and double shaft output

4

Screen machine

φ1.5×4 Q235 1

Motor 2.2KW

5

Conveyor

  Q235 4

Fabrication on site

6

Control cabinet

  Q235 1

Centralized control operation of granulation system

2、Flow chat of DG200 granulation line with 8t/h.

福亿机械

No.

Name

Specifications

Material

Qty.

Note

1

Dual-axis mixer

500 type

Q235 1

Motor 11KW

2

Disc feeder

  Q235 2

Motor 1.5KW

3

Granulator DG200

    8

The main reducer adopts hard toothed surface and double shaft output

4

Screen machine

φ1.5×4 Q235 1

Motor 2.2KW

5

Conveyor

  Q235 4

Fabrication on site

6

Control cabinet

  Q235 1

Centralized control operation of granulation system

3、Flow chat of DG200 granulation line with 12t/h.

福亿机械

No.

Name

Specifications

Material

Qty.

Note

1

Dual-axis mixer

500 type

Q235

1

Motor 11KW

2

Disc feeder



Q235

3

Motor 1.5KW

3

Granulator DG200





12

The main reducer adopts hard toothed surface and double shaft output

4

Screen machine

φ1.5×4

Q235

1

Motor 2.2KW

5

Conveyor



Q235

4

Fabrication on site

6

Control cabinet



Q235

1

Centralized control operation of granulation system



4、Flow chat of DG200 granulation line with 16t/h.

福亿机械

No.

Name

Specifications



Qty.

Note

1

Dual-axis mixer

500 type

Q235

1

Motor 11KW

2

Disc feeder



Q235

4

Motor 1.5KW

3

Granulator DG200





16

The main reducer adopts hard toothed surface and double shaft output

4

Screen machine

φ1.5×4

Q235

1

Motor 2.2KW

5

Conveyor



Q235

4

Fabrication on site

6

Control cabinet



Q235

1

Centralized control operation of granulation system

5、Flow chat of DG350 granulation line with 16t/h.

福亿机械

No.

Name

Specifications

Material

Qty.

Note

1

Dual-axis mixer

500型

Q235

Motor  15KW

2

Disc feeder



Q235

Motor  1.5KW

3

Granulator DG200





12

The main reducer adopts hard toothed surface and double shaft output

4

Screen machine

φ1.5×4

Q235

1

Motor2.2KW

5

Conveyor



Q235

Fabrication on site

6

Control cabinet



Q235

Centralized control operation of granulation system

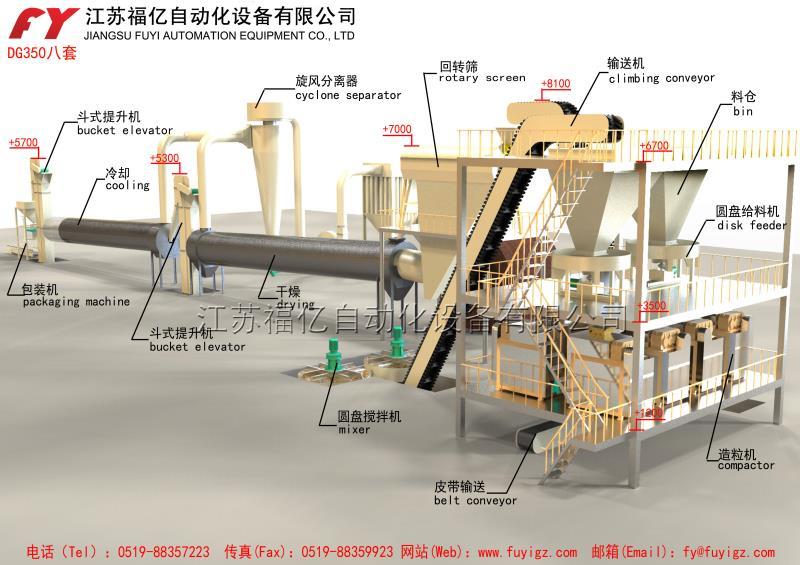

6、Flow chat of DG350 granulation line with 32 t/h.

福亿机械

No.

Name

Specifications

Material

Qty.

Note

1

Dual-axis mixer

500

Q235

1

Motor 15KW

2

Disc feeder



Q235

10

Motor1.5KW

3

Granulator DG350





16

The main reducer adopts hard toothed surface and double shaft output

4

Screen machine

φ1.5×4

Q235

5

Motor 2.2KW

5

Conveyor



Q235

9

Fabrication on site

6

Control cabinet



Q235

1

Centralized control operation of granulation system
